Features1.Soft, flexible and easy to do stripping, splicing and cabling.2.Easily split into two single core cable.3.Good mechanical and environmental characteristics.4.The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards.5.Kevlar yarn material en
Quotation process: After the customer provides specific needs, we will reply to the customer within ten minutes.
Procurement process: product inquiry - contract signing - advance payment - order production - transportation and receipt - after-sales service.
We are 7*24h awaiting for your inquiry,since you sent an email to us,we'll reply immediately,won't you have a try? We look forward to your inquiry.
Email：info@ec-fibercable.com
Whatsapp：+8618075108880

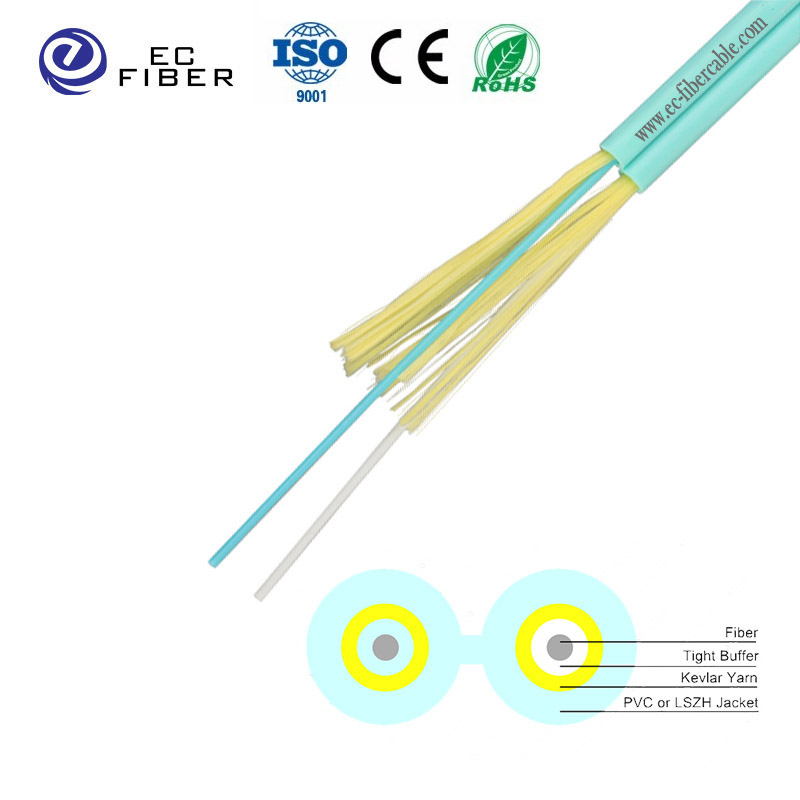

Features：
1.Soft, flexible and easy to do stripping, splicing and cabling.
2.Easily split into two single core cable.
3.Good mechanical and environmental characteristics.
4.The mechanical and physical characteristics of the outer jacket meet the requirement of relevant standards.
5.Kevlar yarn material ensure a good performance of tensile strength.
6.900µm tight buffer protect the fiber well.
7.10G OM3 Fiber type.
Application：
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Patch cable specifications：
| Fiber Count | 1 | |||||
| 0uter Diameter(mm) | 1.6 | 1.8 | 2 | 2.4 | 3 | |
| Nominal weight(kg/km) | 2.9 | 3.2 | 3.5 | 5 | 6.8 | |
| Max.tensile strength(N) | Short-term | 80 | 80 | 100 | 100 | 150 |
| Long-term | 40 | 40 | 60 | 60 | 80 | |
| Min.Bending Radius(mm) | Dynamic | 20D | ||||
| Static | 10D | |||||
| Max.Crush Resistancet(N/100mm²) | 500 | |||||
| Item | Technical Data | ||
| E2000/PC | E2000/UPC | E2000/APC | |
| Insert Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥-40dB | ≥-55dB | ≥-65dB |
| Repeatability | <0.1dB | <0.1dB | <0.1dB |
| Exchange Ability | <0.2dB | <0.2dB | <0.2dB |
| Fiber Type | 9/125μm | ||
| Cable Diameter | φ0.9mm, φ2.0mm, φ3.0 | ||
| Working Humidity | Up to 95% | Up to 95% | Up to 95% |
| Working Temperature | -20°C~+80°C | -20°C~+80°C | -20°C~+80°C |
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
Our Professional International Business Documentation Team And After-sales Service
Our team members who are familiar with the customs policies of various countries and the operation of letters of credit can provide correct and professional support for paper work documents,
Let customers go smoothly in the process of customs clearance of commercial documents, and even help customers save costs. 7 days * 24 hours online service for you, our products are all qualified tests,
To provide you with professional testing reports and certification, quality assurance can be based on your needs, we accept any third-party quality testing.
OUR PARTNERS
1.Are you the real manufacturer?
We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
